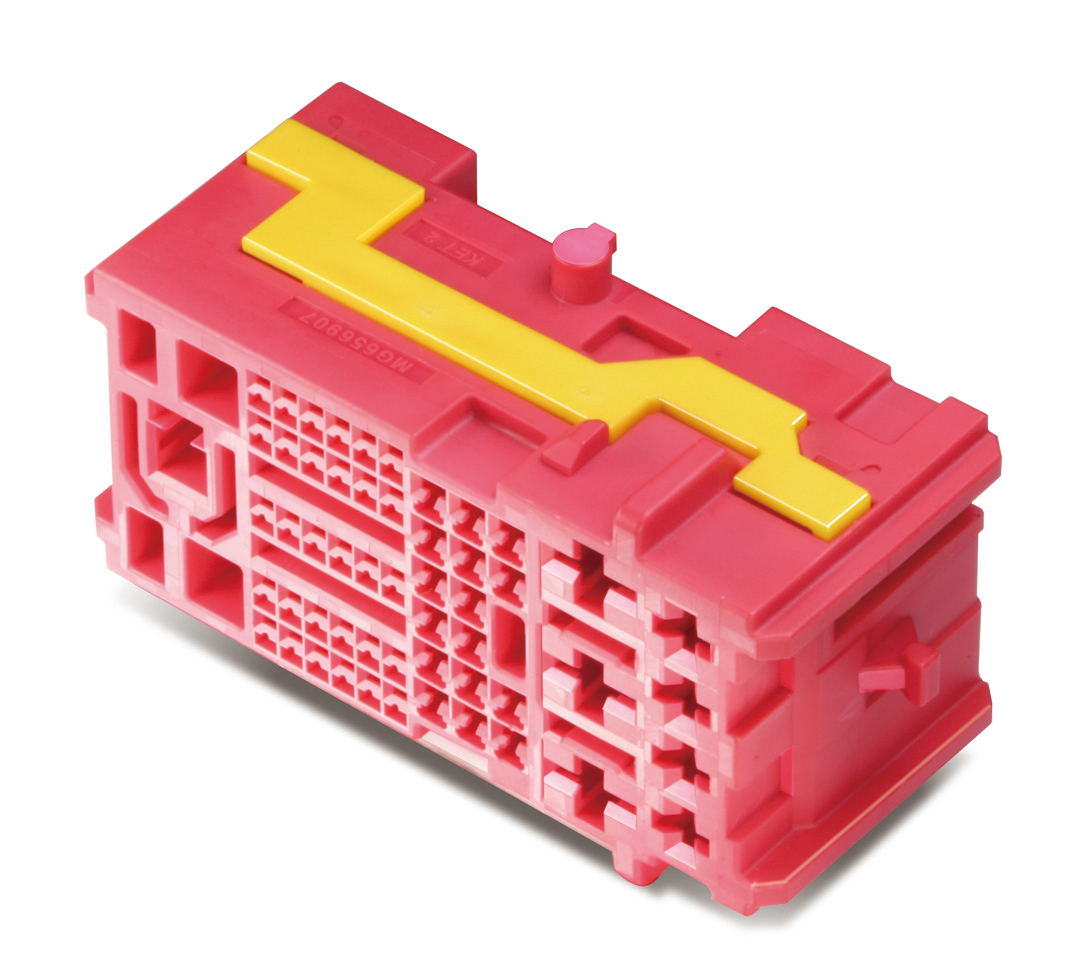

MG656907-1

TE	MG656907-1
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG656907-1 ket Red
Series	150 SERIES
防水	否
Contact Resistance	025:10mΩ MAX. (Initial), 060:5mΩ MAX. (Initial), 110:3mΩ MAX. (Initial), 250:3mΩ MAX. (Initial)
Dimensions	61.633.025.3
孔位数	54
Mating Connector	MG646068
颜色	Red
TPA	YES
Wire Range	025:CHFUS 0.22, AVSS 0.3~0.5, 060:AVSS 0.85, AVSS 1.25, AVSS 0.3+0.3, AVSS 0.3, AVSS 0.5, CHFUS 0.22, 110:CHFUS0.22, AESSXF0.22, AVSS0.3, AESSXF0.3, CIVUS0.35, FLRY-A0.35, AVSS0.5, FLRY-A0.5, AESSXF0.75, FLRY-A0.75, AVSS0.85, FLRY-A1.0, AVSS1.25, AESSXF1.25, FLRYA1.5, AVSS2.0, AESSXF2.0, FLRY-A2.0, AESSXF2.5, FLRY-A2.5, AVSS0.85×0.85, 250:AVSS0.5, AESSXF0.5, FLRY-B0.5, AESSXF0.75, FLRY-B0.75, AVSS0.85, FLRY-B1.0, AVSS1.25, AESSXF1.25,FLRY-B1.5, AVSS2.0, AESSXF2.0, FLRY-B2.0, AESSXF2.5, FLRY-B2.5, AVS3.0, FLRY-B4.0
Insulation Resistance	DC500V / 100MΩ (MIN.)
