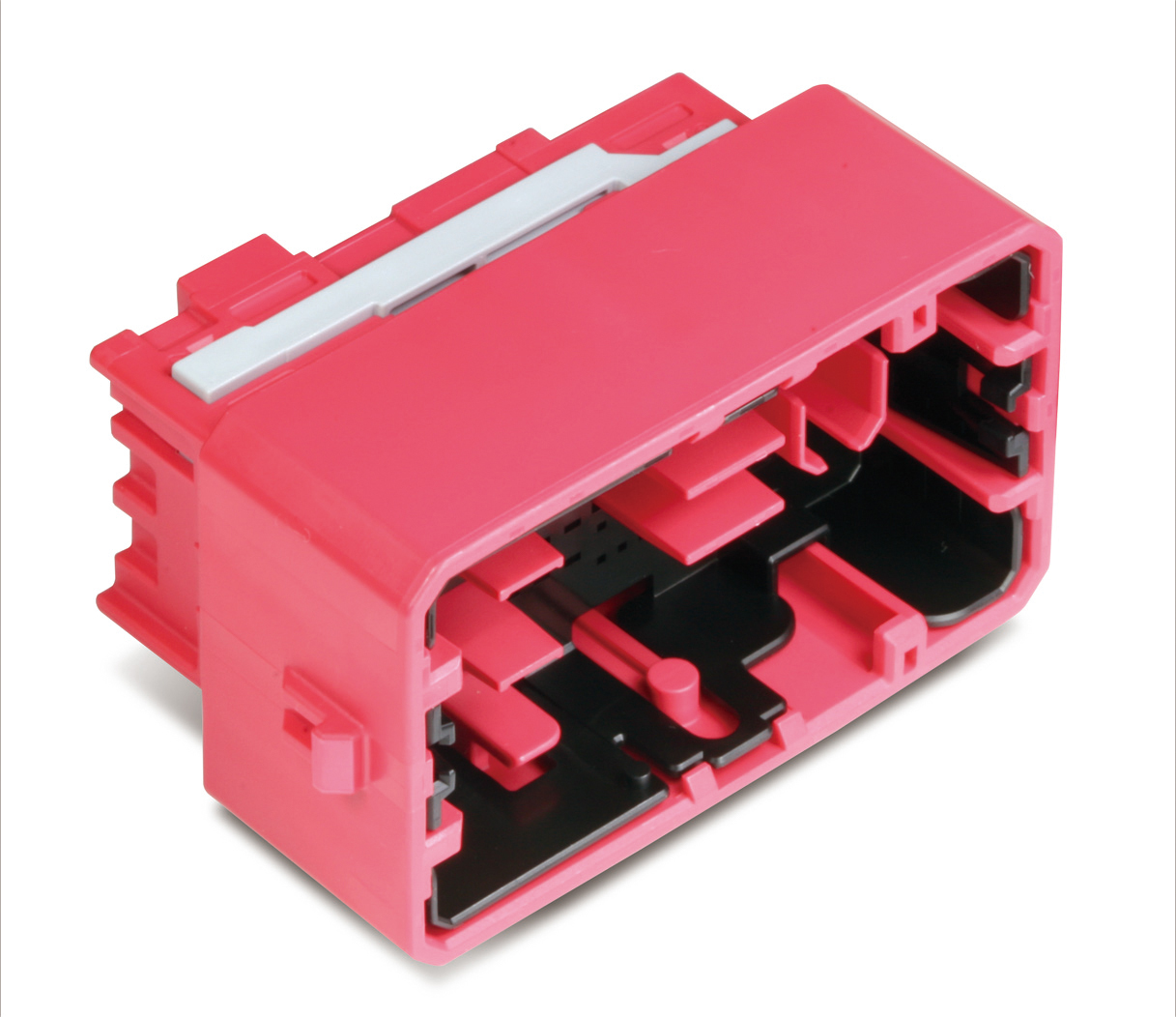

MG646068-1

TE	MG646068-1
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG646068-1 ket Red
Series	150 SERIES
防水	否
Contact Resistance	025:10mΩ MAX(Initial),060:5mΩ MAX(Initial),110:3mΩ MAX(Initial),250:3mΩ MAX(Initial)
Dimensions	67.044.540.2
孔位数	54
Mating Connector	MG656907
颜色	Red
Mating Terminal	ST741360-3, ST741361-3, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3, ST741370-3, ST741371-3, ST741372-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	025:CHFUS0.13~0.22, AVSS0.3~0.5,CIVUS0.35,CIVUS0.5,060:CHFUS0.22,AVSS0.3~0.5,AVSS0.85~1.25,AVSS0.3+0.3,AVSSXF1.0,110:CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CIVUS(0.35+0.35),AVSSXF1.0,AVSS1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS(0.85+0.85),AVSSXF1.5,250:AVSS0.5,AESSXF0.5,FLRY-B0.5,AESSXF0.75,FLRY-B0.75,AVSS0.85,FLRY-B1.0,AESSXF1.25,AVSS1.25,AESSXF1.25,FLRY-B1.5,AVSS2.0,AESSXF2.0,FLRY-B2.0,AESSXF2.5,FLRY-B2.5,AVS3.0,FLRY-B4.0
Insulation Resistance	025:DC500V 100MΩ Min,060:DC500V 100MΩ Min,110:DC500V 100MΩ Min,250:DC500V 100MΩ Min
Insulation Range	1.4~4.4
