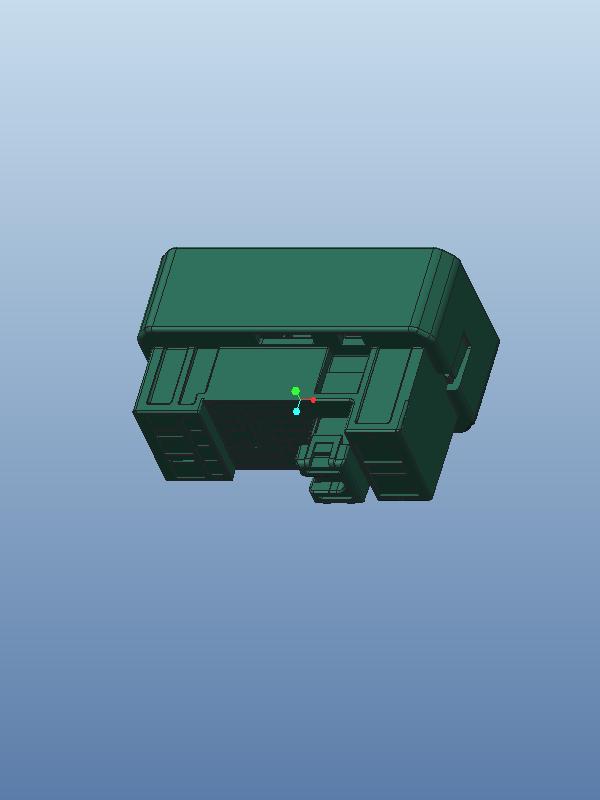

MG646275

MG646275

类　　型：: 连接器

品　　牌：: 韩国端子(KET)

颜　　色：: Natural

产品描述：: MG646275 ket Natural

TE	T741361-gMG646275
分类	连接器
类型	Wire To Wire Connector
品牌	韩国端子(KET)
Material Type	PBT
描述	MG646275 ket Natural
Series	HYBRID SERIES
防水	否
Contact Resistance	025:10,060:5,110:3,250:3,312:3,375:2mΩ MAX(Initial)
Dimensions	79.653.045.9
孔位数	71
Pitch(mm)	025:2.23.4,060:3.23.5,110:5.6,250:9.2,312:12.55
Mating Connector	MG657058
Mating Rear Holder	MG630661
颜色	Natural
Mating Tab Width(in)	.025 / .060 / .110 / .250 / .312 / .375
Terminal Transmits(A)	025:5,060:6,110:10,250:25,312:42,375:60
Mating Terminal	ST740538-3, ST740539-3, ST740600-3, ST740601-3, ST741360-3, ST741360-g, ST741361-3, ST741361-g, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3, ST741370-3, ST741371-3, ST741372-3
Primary Locking Type	HSG Lance
TPA	YES
Wire Range	AVSS 0.3~0.5,CHFUS 0.22,AVSS 0.3,0.5,0.85,1.25,CHFUS 0.22,AVSS 1.25,AESSXF1.25,FLRY-A1.5,AVSS2.0,AESSXF2.0,FLRY-A2.0,AESSXF2.5,FLRY-A2.5,AVSS0.85X0.85,AVSS0.5,FLRY-A0.5,AESSXF0.75,FLRY-A0.75,AVSS0.85,FLRY-A1.0,CHFUS0.22,AESSXF0.22,AVSS0.3,AESSXF0.3,CIVUS0.35,FLRY-A0.35,AVS3.0,FLRY-B4.0,AVSS1.25,AESSXF1.25,FLRY-B1.5,AVSS2.0,AESSXF2.0,FLRY-B2.0,AESSXF2.5,FLRY-B2.5,AVSS0.5,AESSXF0.5,FLRY-B0.5,AESSXF0.75,FLRY-B0.75,AVSS0.85,FLRY-B1.0,AVS2.0~3.0,AVS5.0,AV8.0,AVS5.0,AVS8.0,AVS3.0
Mating Clip	MG631267, MG631268, MG631471, MG631929, MG632019, MG632970, MG633815-5, MG633862, MG633870-5, MG634834, MG635682-5, MG635707, MG635710, MG635710, MG663492-5
Insulation Resistance	DC 500V 100MΩ
