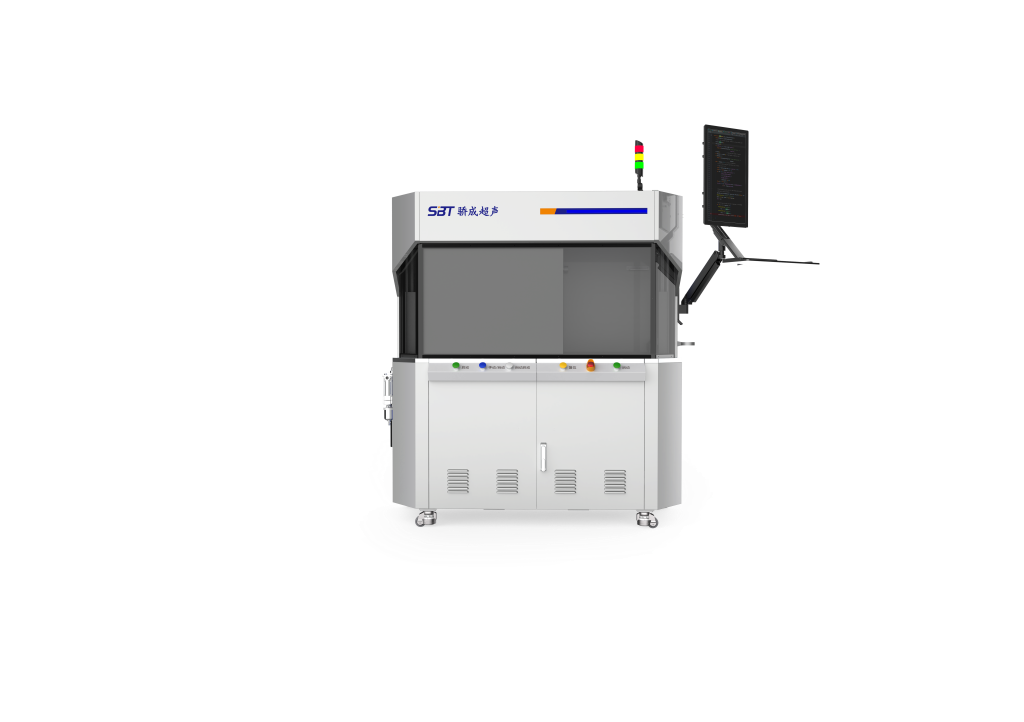

大功率线束端子超声波焊接机WL

类　　型：: 超声波焊接机

品　　牌：: 骄成超声

颜　　色：: 其他

产品描述：: 大功率线束端子超声波焊接机WL

联系我们

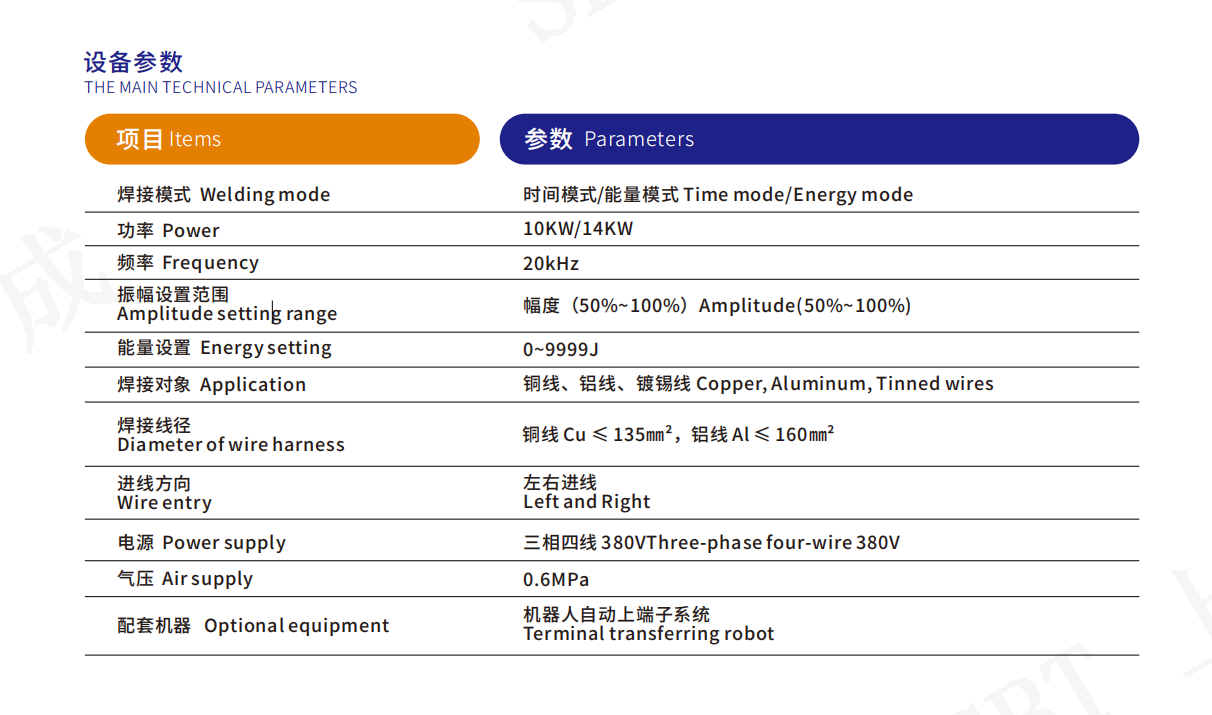

参数

应用方向

适用于较大线径(最大线径160mm²)线束与线束焊接、线束与端子焊接、端子和端子焊接、铜片铝片等较厚较大面金属积焊接应用。

功能特点

全数字式超声波系统，可实现频率、振幅、压力等参数的数字化控制；
可实现大功率输出，上限功率14000W；
可根据操作要求和应用环境定制焊头、焊齿、焊座和可调节夹具，满足不同焊接需求；
操作简单，手动和全自动均可，能够适应不同的生产流程；
可定制半自动全自动焊接工作台，支持多种进线方式，多种进线方向；

APPLICATIONS

It is suitable for the welding of large square diameter wire harness(up to 160mm²) to wire harness, wire harness to terminal, terminal to terminal, copper sheet and aluminum sheet which are thick and have large welding area.

FEATURES

1.The full-digital ultrasonic system that enables the digital control of parameters such as frequency, amplitude, and pressure.

2.It can achieve high power output, with a maximum power of 14,000W.

3.Welding horns, welding teeth, welding anvils, and adjustable fixtures can be customized according to operational requirements and application environments to meet different welding needs.

4.Easy to operate, with both manual and automatic modes available to adapt to different production processes.

5. Offer customizable semi-automatic or full-automatic welding benches that support various wire feeding methods and orientations.
