57293
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 057293 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 57293 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 057293 阿雷蒙 |

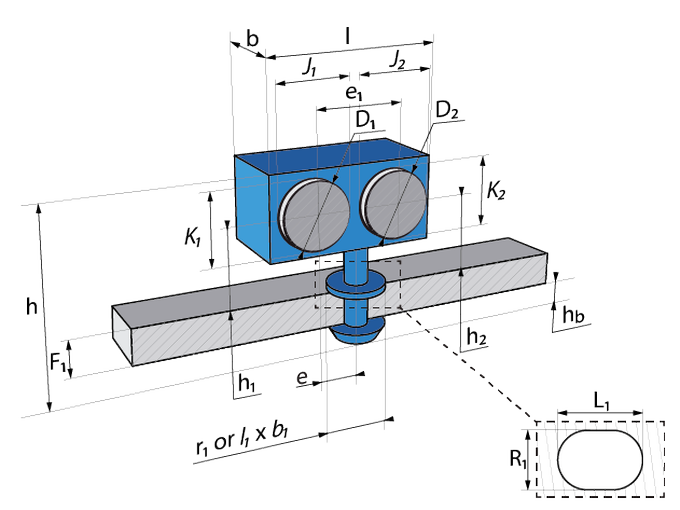

| b - Width | 30 |
| e - Mounting axle to furthest housing center | 15 |
| h - Height | 38.5 |
| h1 - Height | 18 |
| hb - Height below support | 4.5 |
| l - Length | 57 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 16-17.5 |
| F1 - Thickness | 0.8-1.5 |
| R1 - Hole Diameter | 8.2 |
| e1 - Center to Center distance | 30 |
| D2 - Tube or Cable Diameter | 10-11.5 |
| h2 - Height | 18 |
| L1 - Hole Length | 12.2 |
| L1xR1 - Hole Length x Hole Diameter | 12.2 x 8.2 |
| R1xL1 - Hole Diameter x Hole Length | 8.2 x 12.2 |
