200470
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 200470 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 200470 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 200470 阿雷蒙 |

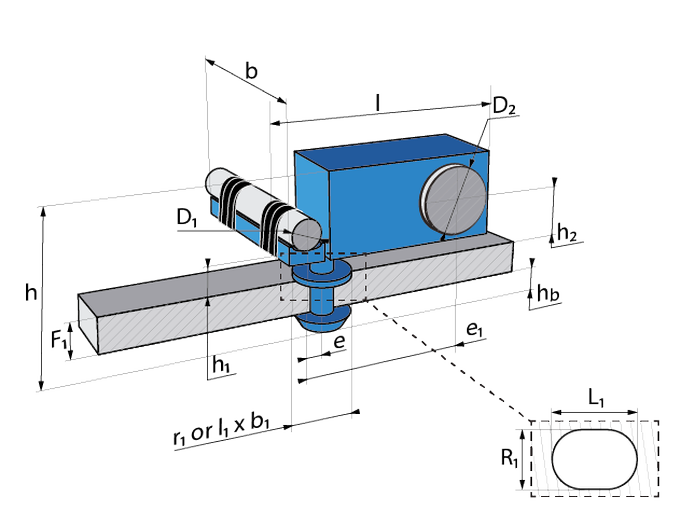

| b - Width | 40.5 |
| b1 - Width | 16 |
| e - Mounting axle to furthest housing center | 21.6 / 28.3 |
| h - Height | 12.7 |
| h1 - Height | 5.75 |
| hb - Height below support | 6.5 |
| l - Length | 57 |
| l1 - Length | 21 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 20 |
| F1 - Thickness | 1.5 |
| R1 - Hole Diameter | 6.9-7.1 |
| e1 - Center to Center distance | 6.7 |
| D2 - Tube or Cable Diameter | 20 |
| h2 - Height | 14.6 |
| l1xb1 - Length x Width | 21 x 16 |
| L1 - Hole Length | 11.9-12.1 |
| L1xR1 - Hole Length x Hole Diameter | 11.9-12.1 x 6.9-7.1 |
| R1xL1 - Hole Diameter x Hole Length | 6.9-7.1 x 11.9-12.1 |
| bta1 - Width of tape-on | 28 |
