208336
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 208336 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 208336 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 208336 阿雷蒙 |

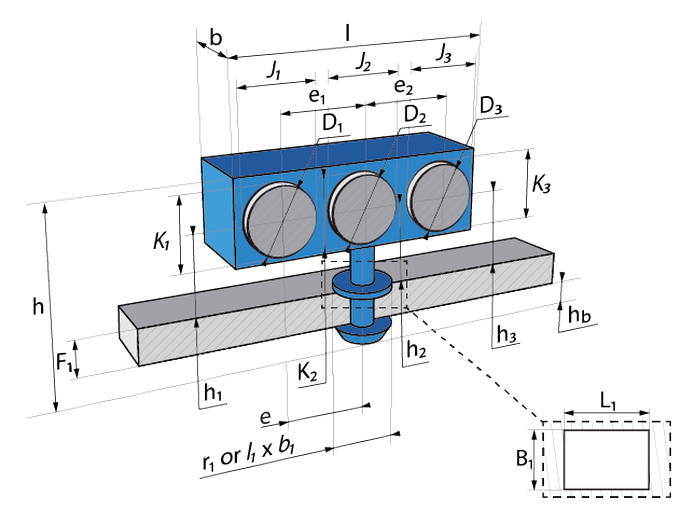

| b - Width | 23 |
| b1 - Width | 23 |
| e - Mounting axle to furthest housing center | 32 |
| h - Height | 37.8 |
| h1 - Height | 10.5 |
| hb - Height below support | 13 |
| l - Length | 61.5 |
| l1 - Length | 20 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 3-6 |
| F1 - Thickness | 1.1 |
| e1 - Center to Center distance | 13 |
| D2 - Tube or Cable Diameter | 14 |
| e2 - Center to Center distance | 34.5 |
| D3 - Tube or Cable Diameter | 7.1 |
| l1xb1 - Length x Width | 20 x 23 |
| L1 - Hole Length | 10.3-10.7 |
| B1 - Hole Width | 9.8-10.2 |
| L1xB1 - Hole Length x Hole Width | 10.3-10.7 x 9.8-10.2 |
