211353
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 211353 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 211353 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 211353 阿雷蒙 |

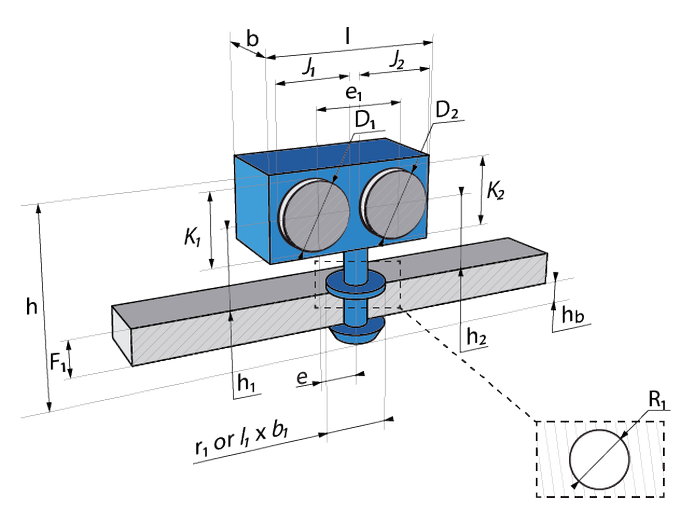

| b - Width | 24 |
| e - Mounting axle to furthest housing center | 19.8 |
| h - Height | 83 |
| h1 - Height | 12 |
| hb - Height below support | 6.9 |
| l - Length | 109 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 5.7 |
| F1 - Thickness | 0.7-1.2 |
| R1 - Hole Diameter | 8.08-8.3 |
| e1 - Center to Center distance | 36.6 |
| D2 - Tube or Cable Diameter | 14 min |
| J1 - Width of housing | 60 |
| J2 - Width of housing | 14 |
| K1 - Height of housing | 9.3 |
| K2 - Height of housing | 16 |
| h2 - Height | 16 |
| J1xK1 - Width of housing x Height of housing | 60 x 9.3 |
| J2xK2 - Width of housing x Height of housing | 14 x 16 |
