222078
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 222078 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 222078 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 222078 阿雷蒙 |

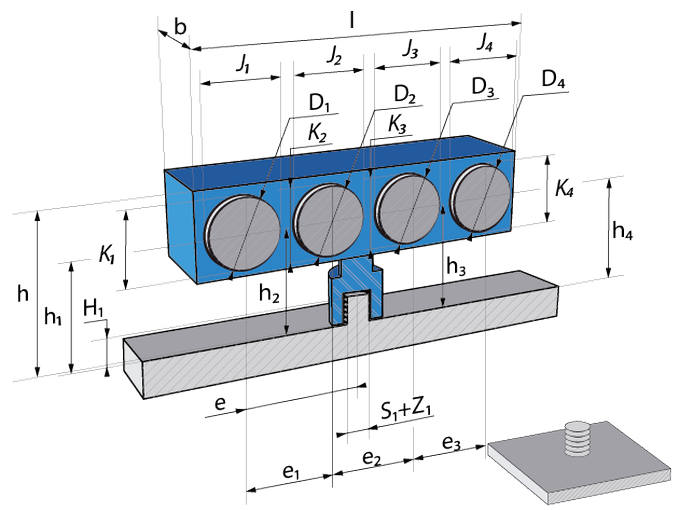

| b - Width | 18 |
| e - Mounting axle to furthest housing center | 16.3 |
| h - Height | 29.5 |
| h1 - Height | 14.5 |
| l - Length | 78.2 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 15.2-16 |
| e1 - Center to Center distance | 29.9 |
| D2 - Tube or Cable Diameter | 9.9-10.4 |
| S1 - Screw Specification | M6 x 1,00 |
| h2 - Height | 11.3 |
| e2 - Center to Center distance | 17.3 |
| h3 - Height | 11.4 |
| D3 - Tube or Cable Diameter | 15.2-16 |
| H1 - Support height | 26 |
