223308
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 223308 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 223308 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 223308 阿雷蒙 |

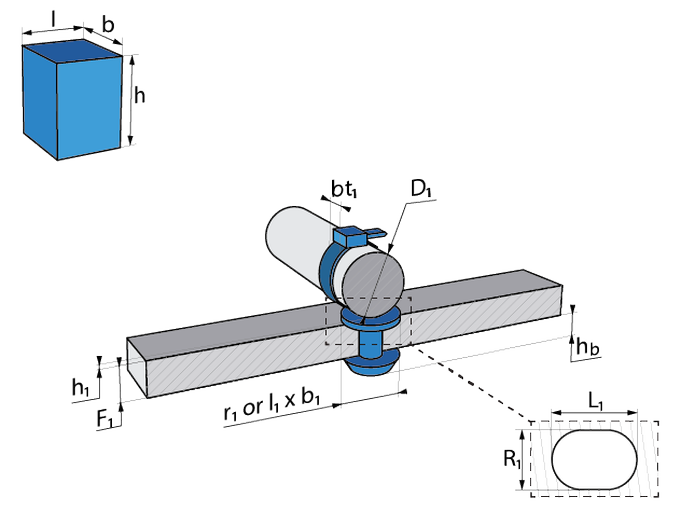

| b - Width | 22.1 |
| b1 - Width | 16 |
| bt1 - Tie Width | 7.1-7.5 |
| h - Height | 21 |
| h1 - Height | 7.7 |
| hb - Height below support | 6.8-7.3 |
| l - Length | 157.5 |
| l1 - Length | 21 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 3-25 |
| F1 - Thickness | 0.6-2.6 |
| R1 - Hole Diameter | 7 |
| l1xb1 - Length x Width | 21 x 16 |
| L1 - Hole Length | 12 |
| L1xR1 - Hole Length x Hole Diameter | 12 x 7 |
| R1xL1 - Hole Diameter x Hole Length | 7 x 12 |
