231204
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 231204 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 231204 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 231204 阿雷蒙 |

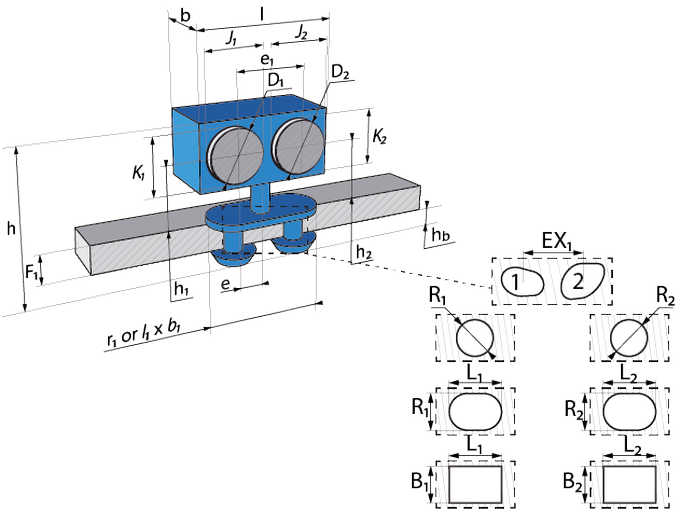

| b - Width | 15 |
| e - Mounting axle to furthest housing center | 4.65 |
| h - Height | 43 |
| h1 - Height | 18 |
| hb - Height below support | 7.6 |
| l - Length | 45 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 15-21.5 |
| F1 - Thickness | 2-2.2 |
| e1 - Center to Center distance | 23 |
| D2 - Tube or Cable Diameter | 7 |
| h2 - Height | 11 |
| L1 - Hole Length | 12-12.3 |
| B1 - Hole Width | 8 |
| L1xB1 - Hole Length x Hole Width | 12-12.3 x 8 |
