237399
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 237399 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 237399 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 237399 阿雷蒙 |

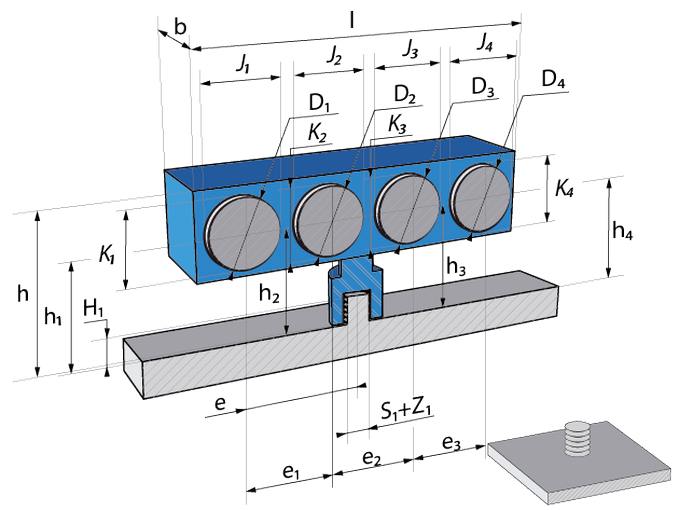

| b - Width | 16 |
| e - Mounting axle to furthest housing center | 24.5 |
| h - Height | 74.4 |
| h1 - Height | 10.5 |
| l - Length | 73.1 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 5 |
| e1 - Center to Center distance | 12 |
| D2 - Tube or Cable Diameter | 5 |
| J1 - Width of housing | 5 |
| J2 - Width of housing | 5 |
| S1 - Screw Specification | T5 Stud |
| h2 - Height | 10.5 |
| e2 - Center to Center distance | 25 |
| h3 - Height | 10.5 |
| D3 - Tube or Cable Diameter | 5 |
| H1 - Support height | 14 |
| J3 - Width of housing | 5 |
| Z1 - Stud Size | 5 |
