240523
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 240523 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 240523 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 240523 阿雷蒙 |

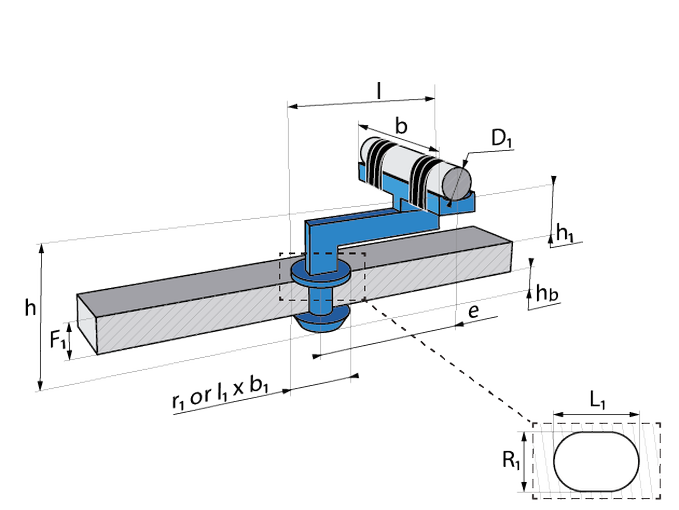

| b - Width | 44 |
| b1 - Width | 6 |
| e - Mounting axle to furthest housing center | 30 |
| h - Height | 10.2 |
| h1 - Height | 2 |
| hb - Height below support | 4.5-6.5 |
| l - Length | 40 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 0-50 |
| F1 - Thickness | 0.5-2.5 |
| R1 - Hole Diameter | 6.1-6.7 |
| L1 - Hole Length | 10-11 |
| L1xR1 - Hole Length x Hole Diameter | 10-11 x 6.1-6.7 |
| R1xL1 - Hole Diameter x Hole Length | 6.1-6.7 x 10-11 |
| bta1 - Width of tape-on | 8 |
| B1 - Hole Width | 6.1-6.7 |
| L1xB1 - Hole Length x Hole Width | 10-11 x 6.1-6.7 |
