243502
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 243502 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 243502 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 243502 阿雷蒙 |

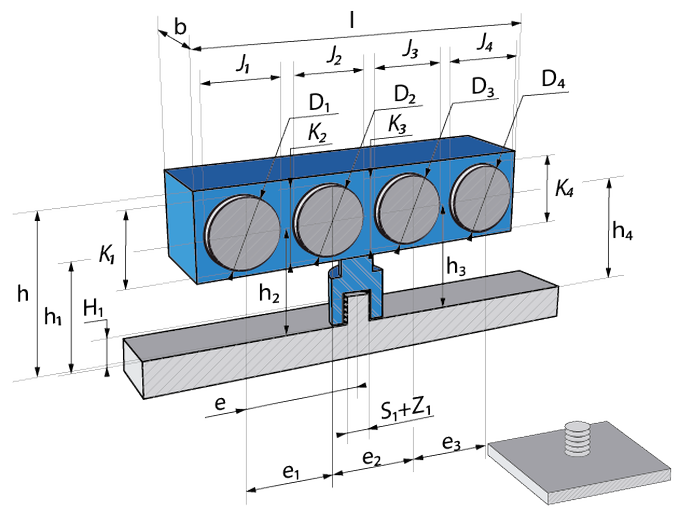

| b - Width | 17 |
| e - Mounting axle to furthest housing center | 45.7 |
| h - Height | 23.5 |
| h1 - Height | 9.3 |
| l - Length | 79 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 5-5.4 |
| e1 - Center to Center distance | 9.5 |
| D2 - Tube or Cable Diameter | 5-5.4 |
| S1 - Screw Specification | T5 Stud |
| h2 - Height | 9.3 |
| e2 - Center to Center distance | 19.75 |
| h3 - Height | 10.1 |
| D3 - Tube or Cable Diameter | 9.5-10.5 |
| H1 - Support height | 14.5 |
| Z1 - Stud Size | 5 |
| J1xK1 - Width of housing x Height of housing | 5.3 x 5.3 |
| J2xK2 - Width of housing x Height of housing | 5.3 x 5.3 |
