244320
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 244320 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 244320 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 244320 阿雷蒙 |

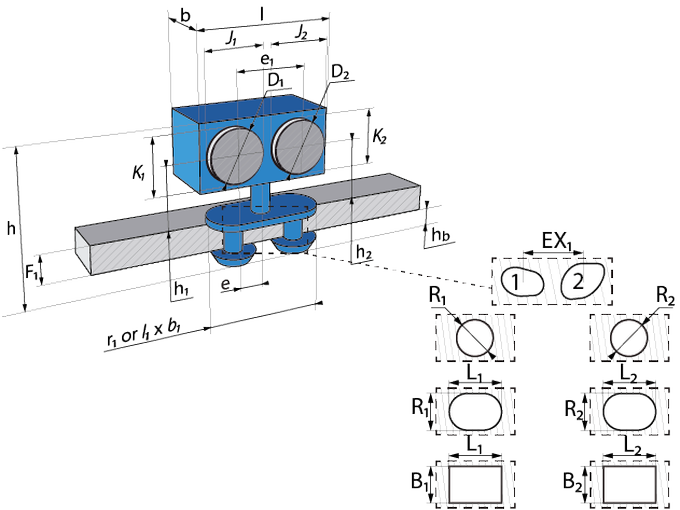

| b - Width | 12 |
| b1 - Width | 12 |
| e - Mounting axle to furthest housing center | 22 |
| h - Height | 48 |
| h1 - Height | 10.9 |
| hb - Height below support | 7.9-20.4 |
| l - Length | 54 |
| l1 - Length | 48.5 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 14.5 |
| F1 - Thickness | 2-14.5 |
| R1 - Hole Diameter | 5.05-5.35 |
| e1 - Center to Center distance | 24.7-25.3 |
| D2 - Tube or Cable Diameter | 14.5 |
| J1 - Width of housing | 14.5 |
| J2 - Width of housing | 14.5 |
| K1 - Height of housing | 14.5 |
| K2 - Height of housing | 14.5 |
| h2 - Height | 10.9 |
| l1xb1 - Length x Width | 48.5 x 12 |
| J1xK1 - Width of housing x Height of housing | 14.5 x 14.5 |
| J2xK2 - Width of housing x Height of housing | 14.5 x 14.5 |
