250536
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 250536 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 250536 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 250536 阿雷蒙 |

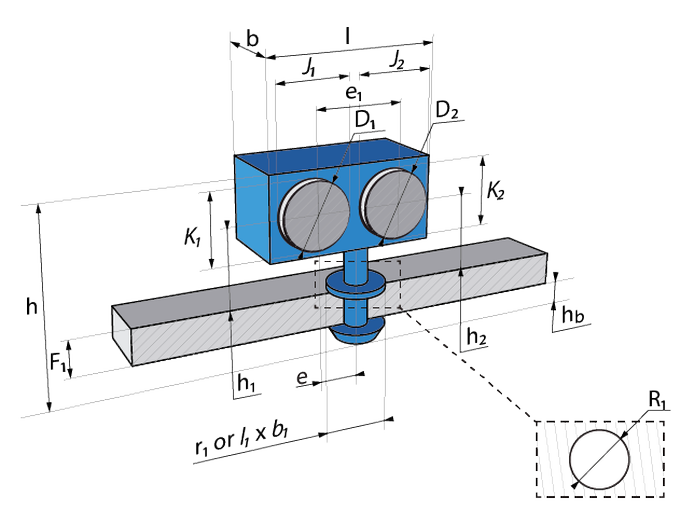

| b - Width | 15 |
| e - Mounting axle to furthest housing center | 5.5 |
| h - Height | 27.1 |
| h1 - Height | 10.8 |
| hb - Height below support | 6-9 |
| l - Length | 27.3 |
| lxb - Length x Width | - |
| r1 - Contact Diameter | 20 |
| D1 - Tube or Cable Diameter | 5.03-6.1 |
| F1 - Thickness | 0.8-3.8 |
| R1 - Hole Diameter | 6.5-6.7 |
| e1 - Center to Center distance | 11 |
| D2 - Tube or Cable Diameter | 5.03-6.1 |
| h2 - Height | 10.8 |
| J1xK1 - Width of housing x Height of housing | 6.7 x 6 |
| J2xK2 - Width of housing x Height of housing | 6.7 x 6 |
