250993
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 250993 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 250993 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 250993 阿雷蒙 |

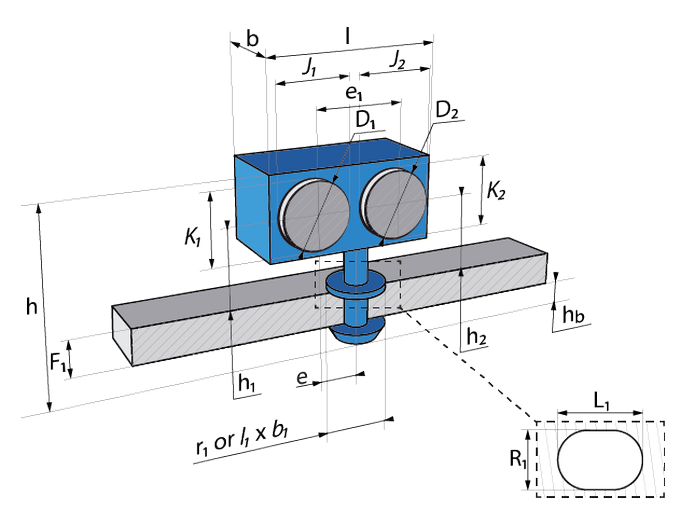

| b - Width | 25.6 |
| b1 - Width | 6.5 |
| e - Mounting axle to furthest housing center | 12.5 |
| h - Height | 94.1 |
| h1 - Height | 61 |
| hb - Height below support | 6 |
| l - Length | 91 |
| l1 - Length | 11.5 |
| lxb - Length x Width | - |
| r1 - Contact Diameter | 5.75 |
| D1 - Tube or Cable Diameter | 35 |
| F1 - Thickness | 1.6-2.7 |
| R1 - Hole Diameter | 7 |
| e1 - Center to Center distance | 48.5 |
| D2 - Tube or Cable Diameter | 25 |
| J1 - Width of housing | 40 |
| J2 - Width of housing | 30 |
| K1 - Height of housing | 40 |
| K2 - Height of housing | 30 |
| h2 - Height | 57.5 |
| l1xb1 - Length x Width | 11.5 x 6.5 |
| L1 - Hole Length | 12 |
| L1xR1 - Hole Length x Hole Diameter | 12 x 7 |
| J1xK1 - Width of housing x Height of housing | 40 x 40 |
| J2xK2 - Width of housing x Height of housing | 30 x 30 |
| R1xL1 - Hole Diameter x Hole Length | 7 x 12 |
