258041
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 258041 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 258041 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 258041 阿雷蒙 |

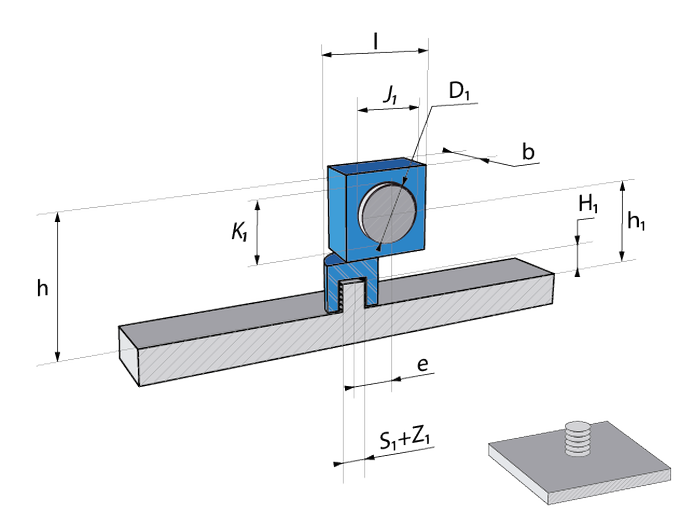

| b - Width | 10 |
| b1 - Width | 10 |
| e - Mounting axle to furthest housing center | 22 |
| h - Height | 35.7 |
| h1 - Height | 16 |
| l - Length | 45.6-49.8 |
| l1 - Length | 28.15 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 18-23 |
| S1 - Screw Specification | M5 x 0,80 |
| l1xb1 - Length x Width | 28.15 x 10 |
| S2 - Screw Specification | M6 x 1,00 |
| S3 - Screw Specification | T5 Stud |
| S4 - Screw Specification | T6 Stud |
