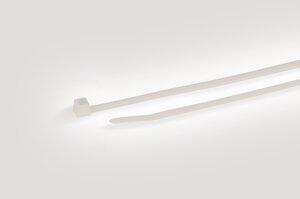

| TE | 111-04909 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | White cable tie for higher fire-protection Conform to low smoke generation requirements (UL94 V0) Low evolution of toxic gases and corrosive acids in event of a fire PA66V0 cable ties are available in different sizes High safety rating due to low fire hazard |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50R-PA66V0-NA |
| Product Family | T-Series in PA66V0 |
| Product Group | Cable Ties for higher fire-protection |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 202.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Flammability | UL 94 V0 |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +100 °C |
| Specifications | UL-ZODZ2.E64139 |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 4031026419497.0 |
