| TE | 111-01525 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MBT60UHDFC Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

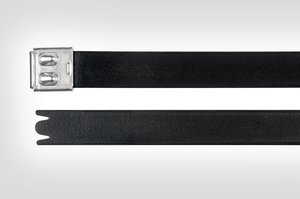

| 描述 | MBT cable ties, made from stainless steel SS316 with a polyester coating Non-releasable locking feature Double wrap operation Corrosion resistant Weather resistant Outstanding chemical resistance High temperature resistant Non-burning |
| Application Tool | HDT16, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT60UHDFC-SS316/SP-BK |
| Product Family | MBTXHDFC- / MBTUHDFC-Series, stainless steel 316 |
| Product Group | Double wrap cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Stainless Steel Cable Tie 1524x16 mm, black |
| 颜色 | Black (BK) |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
| Bundle ∅ max. | 230mm |
| Bundle ∅ min. | 25mm |
| Length (L) | 1524mm |
| Min.Tensile Strength | 5000N |
| Thickness (T) | 0.38mm |
| Width (W) | 16mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Stainless Steel (SS316), Polyester (SP) |
| Operating Temperature - °C | -80 °C to +538 °C |
| GTIN-13 / EAN | 5022660341786.0 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 1.68m |
| Packaging 1 - Qty | 25.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0042m³ |
| Packaging 1 - Weight (kg) | 1.553251kg |
| Packaging 1 - Width (m) | 0.1m |
