| TE |
112-00012 |
| 分类 |
扎带 |
| 品牌 |
海尔曼太通全球(HellermannTyton) |
| 类型 |
Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Robusto (LPH962) Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 |
Made of Polyamide 11, a sustainable bioplastic Outside serrated cable tie with rounded head design Low insertion force for tool-free application High tensile strength with a single – or a double-bridged head Soft material for easy handling without damaging the bundle Very good UV resistance and durability in outdoor applications Stable technical performance even at very low temperatures Offers limited resistance to acids, bases and oxidising agents Low water absorption rate and high durability P |
| Application Tool |
MK9P, MK9P w/ Upper air, MK10-SB, EVO9, EVO9HT |
| Colour |
Black (BK) |
| Identification Plate Position |
none |
| Pack Cont. |
100pcs. |
| Package Quantity per |
box |
| PART DESCRIPTION |
Robusto (LPH962)-PA11-BK |
| Product Family |
Robusto-Series |
| Product Group |
Cable ties with low profile head |
| Releasable Closure (Yes/No) |
No |
| Short Description |

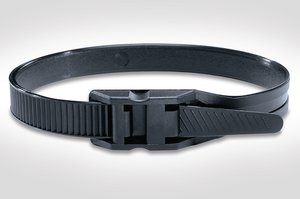

Low Profile Head Cable Tie 260x9 mm, black |
| 颜色 |
Black (BK) |
| Tie Closure |
plastic pawl |
| Variant |
Outside Serrated |
| Bundle ∅ max. |
62.0mm |
| Bundle ∅ min. |
25.0mm |
| Length (L) |
260mm |
| Min.Tensile Strength |
530N |
| Thickness (T) |
1.7mm |
| Width (W) |
9mm |
| ELV compliant (Article 4 - 2) |
YES |
| Flammability |
UL 94 HB |
| Hazardous good |
No |
| Material |
Polyamide 11 (PA11) |
| Operating Temperature - °C |
-40 °C to +85 °C |
| Specifications |
IEC 62275 |
| GTIN-13 / EAN |
4031026271231.0 |
| Packaging 1 - Height (m) |
0.08m |
| Packaging 1 - Length (m) |
0.28m |
| Packaging 1 - Qty |
100.0 |
| Packaging 1 - Type |
bag |
| Packaging 1 - Volume (m³) |
0.0019m³ |
| Packaging 1 - Weight (kg) |
0.399001kg |
| Packaging 1 - Width (m) |
0.085m |
