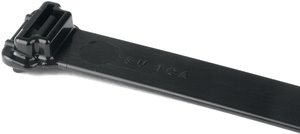

| TE | 111-12301 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WSI Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories |
| 描述 | Wide strap is designed to minimize pinching of soft hoses and convoluted tubing Low profile head Clamping rails on the bottom of head to increase grip on round bundles Accommodates a large range of bundle diameters: 9.5mm - 104.7mm Flexible strap Bent tip for quick insertion into mounts |
| Application Tool | MK9P, EVO9, EVO9HT, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 300pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | WSI-PA66HIRHSUV-BK |
| Product Family | with Low-profile Head |
| Product Group | Wide-Strap Cable Tie |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 305x12.7 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 82.5mm |
| Bundle ∅ min. | 9.5mm |
| Length (L) | 307.0mm |
| Min.Tensile Strength | 535.0N |
| Thickness (T) | 1.4mm |
| Width (W) | 12.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026311654.0 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 300.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 0.600001kg |
| Packaging 1 - Width (m) | 0.12m |
