| TE | 150-10140 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30RSB5 Competences Cable holder Accessories Similar products |

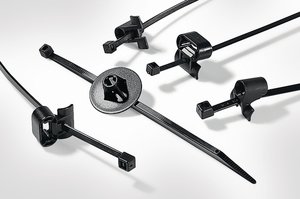

| 描述 | Pre-assembled 2-piece fixing tie with stud retainer Cable tie head can be moved after bundling Easy to install without the need for a tool SB5-types for 5 mm studs or 5 mm ISO threaded studs Types with disc can retain insulation materials while fixing a cable bundle Oval shape can be adjusted in a lateral position |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7, EVO7SP |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 300pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30RSB5-PA66HS/POM-BK |
| Product Family | With SB5 clip |
| Product Group | 2-Piece Fixing Ties for Weld Studs, moveable |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece Fixing Tie for Weld Studs moveable 150x3.5 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 32.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 150mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.1mm |
| Width (W) | 3.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026119205.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 300.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.861815kg |
| Packaging 1 - Width (m) | 0.41m |
