| TE | 150-55610 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T18RDP5 Competences Cable holder Accessories Similar products |
| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK3PNSP2, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T18RDP5-PA66-BK |
| Product Family | Fir tree parts FT5 |
| Product Group | 1-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |

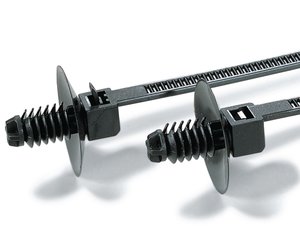

| Short Description | 1-Piece Fixing Tie with Fir Tree and Disc PA66 110x2.5 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 20.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 110.0mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.1mm |
| Width (W) | 2.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-380-9843 |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 5022660320224.0 |
| Packaging 1 - Height (m) | 0.106m |
| Packaging 1 - Length (m) | 0.249m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00486m³ |
| Packaging 1 - Weight (kg) | 0.207001kg |
| Packaging 1 - Width (m) | 0.184m |
