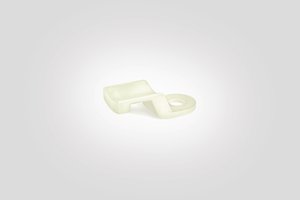

| TE | 151-02156 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to TY3F1 Competences Self-Adhesive cable tie mounts |
| 描述 | Small overall size for areas with limited mounting space Special design could be used for height adjustment Simple to install with a screw, bolt or rivet Excellent security, particularly in areas of high vibration Single hole fixing with two-way entry for cable tie |
| Colour | Natural (NA) |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | TY3F1-PA66-NA |
| Product Family | TY-Series curved design, screwable |
| Product Group | Mounts for screw fixing |
| Short Description | Fixing mount 19x8 mm natural |
| 颜色 | Natural (NA) |
| Length (L) | 19.0mm |
| Width (W) | 8.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-196-8695 |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026586489.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00186m³ |
| Packaging 1 - Weight (kg) | 0.265265kg |
| Packaging 1 - Width (m) | 0.31m |
