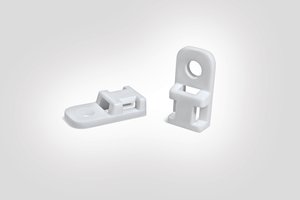

151-00540

产品描述：: Suitable for applications with minimal space Mounted before cable installation and in line with cable CTAM has 4-way entry design for use in line or at 90° angle to cable run

TE	151-00540
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CTAM1 Competences Self-Adhesive cable tie mounts Similar products
描述	Suitable for applications with minimal space Mounted before cable installation and in line with cable CTAM has 4-way entry design for use in line or at 90° angle to cable run
Colour	Blue (BU)
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	CTAM1-E/TFE-BU
Product Family	CTAM-Series for applications where space is limited
Product Group	Screw fixing mounts
颜色	Blue (BU)
Length (L)	20.5mm
Width (W)	10.2mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V0
Hazardous good	No
Material	Ethylene Tetrafluoroethylene (E/TFE)
Operating Temperature - °C	-80 °C to +170 °C
Specifications	ANSI/UL 1565, ANSI/UL 62275
UL OCD link	Link
UL-File Number	E64962
GTIN-13 / EAN	4944387942170.0
Packaging 1 - Height (m)	0.015m
Packaging 1 - Length (m)	0.17m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00024m³
Packaging 1 - Weight (kg)	0.720001kg
Packaging 1 - Width (m)	0.095m
