| TE | 151-03102 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CTM4 Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Curved design for additional cable support Simple to install with a screw or bolt Excellent security, particularly in areas of high vibration Mounts are available in various sizes and materials |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |

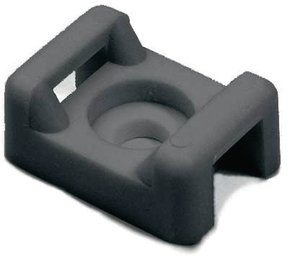

| PART DESCRIPTION | CTM4-PA666V0-BK |
| Product Family | Cable tie mounts with curved design |
| Product Group | Screw fixing mounts |
| 颜色 | Black (BK) |
| Length (L) | 21.8mm |
| Width (W) | 15.8mm |
| Flammability | UL 94 V0, halogen free, Limited Fire Hazard, low generation of toxic gases and corrosive acid, low smoke generation |
| Halogenfree | Yes |
| Material | Polyamide 6.6 + Polyamide 6 V0 (PA66/6V0) |
| Operating Temperature - °C | -40 °C to +120 °C |
| Specifications | ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017 |
| GTIN-13 / EAN | 4031026633732.0 |
| Packaging 1 - Weight (kg) | 0.2676195kg |
