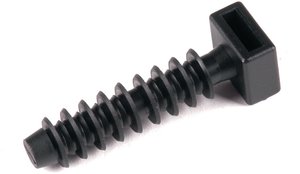

| TE | 151-01277 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LOK01 Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Similar products |
| 描述 | LOK01 – LOK05 usable with any cable ties up to 9 mm wide Suitable for a wide range of materials, including concrete, brick, block and wood Installed by knocking into 7 mm or 8 mm diameter hole LOK01B is designed for soft brickwork and 6 mm holes Elongated head of LOK05 for setting bundles at a distance from brickwork |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LOK01-PA11-BK |
| Product Family | LOK-Series |
| Product Group | Fixing base |
| Short Description | Fixing base black |
| 颜色 | Black (BK) |
| Length (L) | 44.0mm |
| Width (W) | 12.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 11 (PA11) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026486680.0 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00094m³ |
| Packaging 1 - Weight (kg) | 0.200001kg |
| Packaging 1 - Width (m) | 0.09m |
