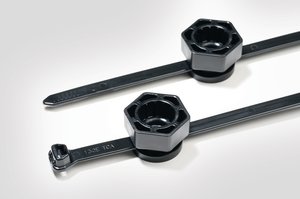

| TE | 156-01623 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Content Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to X120RHDBN16 Competences Cable holder Accessories |
| 描述 | Cable tie head can be moved after bundling Bundle runs directly above the stud with definded stand-off from the panel Useable for metric thread M16 Securely and firm hold even with vibrations X120 cable ties are |
| Application Tool | MK9P, MK9P w/ Upper air, MK21, EVO7, EVO7SP, EVO9, EVO9HT, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 250pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | X120RHDBN16-PA66HIRHS-BK |
| Product Family | For cable routing above the stud |
| Product Group | 2-Piece Fixing Ties with Heavy Duty Mount |
| Short Description | Heavy Duty Mount |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 100.0mm |
| Bundle ∅ min. | 12.0mm |
| Length (L) | 369.0mm |
| Min.Tensile Strength | 535N |
| Width (W) | 7.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026564357.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 250.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 2.979847kg |
| Packaging 1 - Width (m) | 0.545m |
