| TE | 150-21297 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T80ISBS5 Competences Cable holder Accessories |

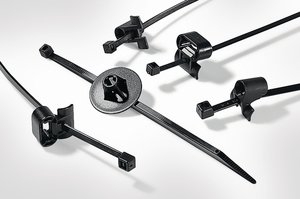

| 描述 | Pre-assembled with cable tie and weld stud mounting base Quick and easy installation Head rotates into perfect position for installation ’Soft-push’ design for tool-free installation Mushroom-shaped SBH handles insulation or a sound-deadening blanket SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required) SB5 allow lateral tolerance for fixing point |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO7SP, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T80ISBS5-PA66-BK |
| Product Group | 2-Piece Fixing Ties for Weld Studs |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece Fixing Tie for Weld Studs 300x4.7 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 80.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 305mm |
| Min.Tensile Strength | 355N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026119786.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.582501kg |
| Packaging 1 - Width (m) | 0.545m |
