| TE | 156-01035 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50XWPM7.0OC15-18CBTO-SD Competences Cable holder |

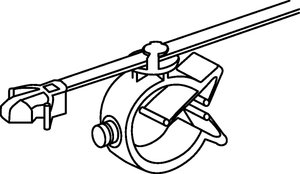

| 描述 | Pre-assembled 2-piece fixing tie with Arrowhead foot part Easy to assemble without the need for a tool Arrowhead foot part can be used for a variety of panel thicknesses For maintenance needs cables can be replaced easily |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50XWPM7.0OC15-18CBTO-SD-PA66HS/PA66HIRHS-BK |
| Product Family | 2-Piece Fixing Ties with Arrowhead, with Wings and Pipe Clip, 90° rotatable |
| Product Group | 2-Piece Fixing Ties with Arrowhead, with Wings |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 27.0mm |
| Bundle ∅ min. | 5.0mm |
| Length (L) | 140.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026456539.0 |
