| TE | 156-00520 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30ROC5J Competences Cable holder Similar products |

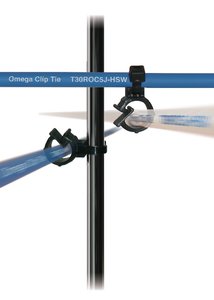

| 描述 | Fixed the cable and piping in the tie, the clip portion is freely moved cable installed. The clip portion can be attached to the cable of up to 5mm diameter in one touch. After putting the cable in the clip part, you can adjust the position of the cable by sliding with anti-slip function, the degree of freedom of design is enlarged. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30ROC5J-PA66HSUV-BK |
| Product Family | Omega clip tie T30ROC5J_Series |
| Product Group | 2-piece fixing ties with pipe clip |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 30mm |
| Bundle ∅ min. | 5mm |
| Length (L) | 152.0mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387957785.0 |
