| TE | 156-01045 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SVCOC10-14 Competences Cable holder Accessories |

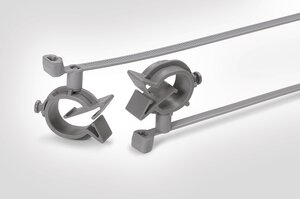

| 描述 | simply clip onto a wire or hose Fixing clip offers full 360° rotation Routed cable can move in any direction in relation to the fixing point Inside serrated cable tie Ideally used in the Automotive Industry |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SVCOC10-14-PA46-GY |
| Product Group | 2-Piece Fixing Ties with Pipe Clip, twistable 360° |
| 颜色 | Grey (GY) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 155mm |
| Min.Tensile Strength | 222N |
| Thickness (T) | 1.35mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| GTIN-13 / EAN | 4031026458038.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.549597kg |
| Packaging 1 - Width (m) | 0.545m |
