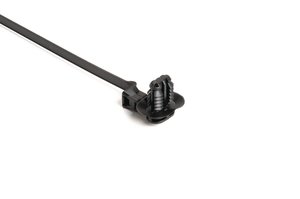

| TE | 157-00458 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50ROSFTOVAL15R Competences Cable holder Similar products |
| 描述 | Bundling and fixing solution Ideal combination of materials and design Different positions of the fixing anchor are available to fit installation space 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 2500Carton |
| Package Quantity per | carton |
| PART DESCRIPTION | T50ROSFTOVAL15R-PA66HIRHSUV-BK |
| Product Family | With Offset 12.5 and 25.0 mm |
| Product Group | 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Oval Holes |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Variant | Outside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 1.8mm |
| Length (L) | 227.0mm |
| Min.Tensile Strength | 220.0N |
| Width (W) | 23.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Operating Temperature - °C | -40 °C to +135 °C, (+140 °C, 500 h) |
| Packaging 1 - Height (m) | 0.3556m |
| Packaging 1 - Length (m) | 0.5842m |
| Packaging 1 - Qty | 2500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05804m³ |
| Packaging 1 - Weight (kg) | 7.750001kg |
| Packaging 1 - Width (m) | 0.2794m |
