| TE | 156-00455 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50ROSP1SFT6.5 Competences Cable holder Accessories |

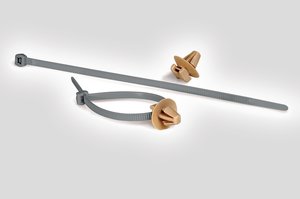

| 描述 | Pre-assembled 2-piece fixing tie with arrowhead foot part Cable tie head can be moved after bundling Easy to assemble without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water Features material PEEK: -55 °C to +240 °C operating temperature Excellent resistance against chemicals and gamma radiation |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7 |
| Colour | Grey (GY), Beige (BGE) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50ROSP1SFT6.5-PA46/PEEK-GY/BGE |
| Product Family | T50ROSP1SFT6.5 for panel thickness 0.7 - 1.3 mm |
| Product Group | 2-Piece Fixing Ties with Arrowhead, with Disc, for high temperature applications |
| Short Description | 2-piece fixing ties with arrowhead, with disc, for high temperature applications 200x4.6 mm, pa46 / peek, grey / beige |
| 颜色 | Grey (GY), Beige (BGE) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 200.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2, UL 94 V0 |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46), Polyetheretherketone (PEEK) |
| Operating Temperature - °C | -40 °C to +130 °C, -55 °C to +240 °C |
| GTIN-13 / EAN | 4031026300153.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.153862kg |
| Packaging 1 - Width (m) | 0.26m |
