| TE | 150-55550 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SDP6 Competences Cable holder Accessories Similar products |

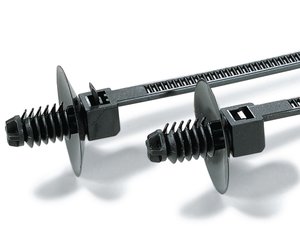

| 描述 | Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust and dirt Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7, EVO7SP |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 250pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T50SDP6-PA66HIRHS-BK |
| Product Family | Fir Tree Parts FT6 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 31mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 170mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 5.0mm |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| GTIN-13 / EAN | 5022660326486.0 |
| Packaging 1 - Weight (kg) | 3.2kg |
