| TE | 126-03001 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to YQR10016 Competences Cable holder Similar products |
| 描述 | Easy to assemble without the need for a tool Cable tie head always situated in defined position Arrowhead simply locks into place Supporting legs provide a secure and firm fixing in areas where space is limited Releasable and therefor reusable “Ladder style” types are very flexible |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | YQR10016-PA66-BK |

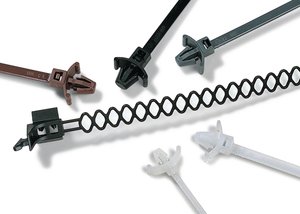

| Product Family | 1-Piece Fixing Ties with Arrowhead, with wings, releasable, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings, releasable |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 34.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 165mm |
| Min.Tensile Strength | 225N |
| Width (W) | 4.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026267104.0 |
| Packaging 1 - Weight (kg) | 1.5kg |
