126-01001

类　　型：: 紧固件

品　　牌：: 海尔曼太通全球(HellermannTyton)

颜　　色：: Black (BK)

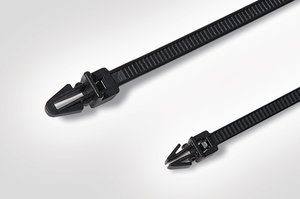

产品描述：: Easy to assemble without the need for a tool Fixing tie with arrowhead without wings Arrowhead simply locks into place Cable tie head always situated in defined position

TE	126-01001
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RSF(E) Competences Cable holder Accessories Similar products
描述	Easy to assemble without the need for a tool Fixing tie with arrowhead without wings Arrowhead simply locks into place Cable tie head always situated in defined position
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	500pcs.
Package Quantity per	bag
PART DESCRIPTION	T50RSF(E)-PA66-BK
Product Family	T50RSF(E) for max. bundle diameter 50,0 mm
Product Group	1-Piece Fixing Ties with Arrowhead
Releasable Closure (Yes/No)	No
Short Description	Fixing tie 210x4.6 mm, black
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	44.0mm
Bundle ∅ min.	3.0mm
Length (L)	210mm
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C, (+105 °C, 500 h)
Specifications	ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number	E64139
GTIN-13 / EAN	5022660326042.0
Packaging 1 - Height (m)	0.08m
Packaging 1 - Length (m)	0.355m
Packaging 1 - Qty	500.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00767m³
Packaging 1 - Weight (kg)	0.786001kg
Packaging 1 - Width (m)	0.27m
