| TE | 150-35932 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SSP Competences Cable holder Accessories |
| 描述 | Arrowhead located on strap for minimal space Disc covering hole for reduced ingress of water and dirt Flexible discs for firm but secure fixing of any panel thickness Tab on end to facilitate easy location and orientation of the head for assembly |
| Application Tool | MK3PNSP2, MK3SP, MK7P, MK20, EVO7, EVO7SP |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SSP-PA66-BK |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc in the strap |
| Releasable Closure (Yes/No) | No |

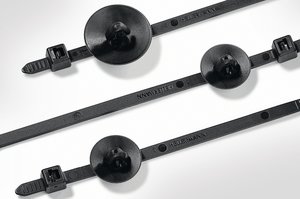

| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc in the strap PA66 120x4.6 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 24.0mm |
| Length (L) | 120mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026120539.0 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.129135kg |
| Packaging 1 - Width (m) | 0.45m |
