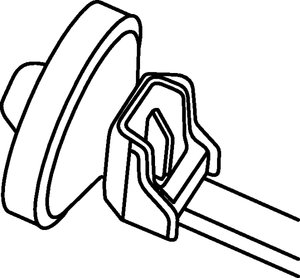

| TE | 126-00336 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to T50SOSSFT6.5E-MDL Competences Cable holder Accessories Similar products |
| 描述 | Easy to assemble without the need for a tool Arrowhead simply locks into place Disc adjusts the tie for pressures from various directions Cable tie head always situated in defined position Cellular rubber seal minimises access of dust, dirt and water T50SOSSFT6.5E-MD and T60SOSSFT6.5E-MD made from PA6.6 HS are tested acc. IEC60529 and fulfil IP67 |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SOSSFT6.5E-MDL-PA66HS-BK |
| Product Family | Fixing Ties, sealed, for Round Holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 158.8mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +125 °C |
