| TE | 126-00252 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OS130-SPM712 Competences Cable holder Similar products |
| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises access of dust and dirt Cable tie head always situated in a defined position Versions for oval holes feature anti-twist protection |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OS130-SPM712-PA66HSW-BK |

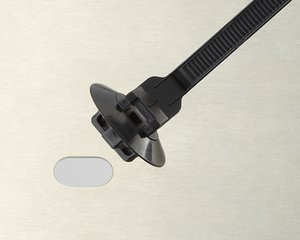

| Product Family | 1-piece fixing ties with arrowhead, with disc, for oval holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 20mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 130mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.4mm |
| Width (W) | 5.0mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387111088.0 |
