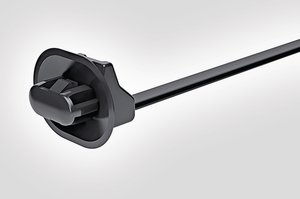

| TE | 126-00131 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to OS170-PM712 Competences Cable holder Similar products |
| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises access of dust and dirt Cable tie head always situated in a defined position Versions for oval holes feature anti-twist protection |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | OS170-PM712-PA66HSUV-BK |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for oval holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 30mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 170mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.5mm |
| Width (W) | 5.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387960310.0 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00254m³ |
| Packaging 1 - Weight (kg) | 0.162001kg |
| Packaging 1 - Width (m) | 0.22m |
