| TE | 111-85489 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RT50SD6 Competences Cable holder Accessories |
| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises access of dust and dirt Cable tie head always situated in a defined position Releasable and therefore reusable |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | RT50SD6-PA66-NA |

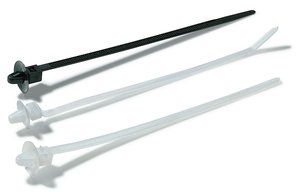

| Product Family | 1-piece fixing tie with arrowhead, with disc, for round holes, releasable |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, releasable |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable 1-Piece Fixing Tie with Arrowhead and Disc PA66 160x5 mm natur |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 31.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 160.0mm |
| Min.Tensile Strength | 180N |
| Thickness (T) | 1.5mm |
| Width (W) | 5.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 5022660315978.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.356m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00408m³ |
| Packaging 1 - Weight (kg) | 0.161001kg |
| Packaging 1 - Width (m) | 0.229m |
