| TE | 126-00255 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30SOS-AS-SFT6.5-E Competences Cable holder Accessories Similar products |
| 描述 | Easy to install without the need for a tool Arrowhead simply locks into place Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt Cable tie head always situated in a defined position KSFT-types with specially rounded arrowhead minimise the assembly height |
| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30SOS-AS-SFT6.5-E-PA66HS-BK |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |

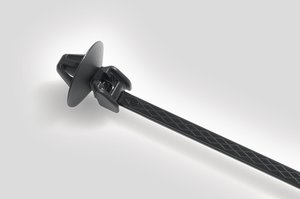

| Short Description | 1-piece fixing tie with arrowhead, with disc 126,4x3.45 mm black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated with AntiSlip Engraving |
| Bundle ∅ max. | 25mm |
| Length (L) | 126.4mm |
| Min.Tensile Strength | 200N |
| Width (W) | 3.45mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| GTIN-13 / EAN | 4031026519784.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 1500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0164m³ |
| Packaging 1 - Weight (kg) | 1.423716kg |
| Packaging 1 - Width (m) | 0.405m |
