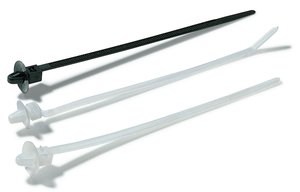

126-00031

产品描述：: Arrowhead simply locks into place Disc covering hole for reduced ingress of dust, dirt and water Adjustable anchor for differing panel thickness to ensure secure fixing RT versions are releasable and reusable, ideal for removal or later addition of cables T50SST type with small tab for additional protection against axial forces Useful to assist retention on convoluted tubing

TE	126-00031
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to T50SST5 Competences Cable holder Accessories Similar products
描述	Arrowhead simply locks into place Disc covering hole for reduced ingress of dust, dirt and water Adjustable anchor for differing panel thickness to ensure secure fixing RT versions are releasable and reusable, ideal for removal or later addition of cables T50SST type with small tab for additional protection against axial forces Useful to assist retention on convoluted tubing
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	T50SST5-PA46-NA
Product Family	1-piece fixing ties with arrowhead, with disc, for round holes
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	31.0mm
Bundle ∅ min.	1.5mm
Length (L)	170.0mm
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Width (W)	4.6mm
Flammability	UL 94 V2, Limited Fire Hazard, halogen free, low smoke generation, low generation of toxic gases and corrosive acid
Material	Polyamide 4.6 (PA46)
Operating Temperature - °C	-40 °C to +150 °C
