| TE | 126-00017 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SST5 Competences Cable holder Accessories Similar products |
| 描述 | Arrowhead simply locks into place Disc covering hole for reduced ingress of dust, dirt and water Adjustable anchor for differing panel thickness to ensure secure fixing RT versions are releasable and reusable, ideal for removal or later addition of cables T50SST type with small tab for additional protection against axial forces Useful to assist retention on convoluted tubing |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SST5-PA66HS-BK |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |

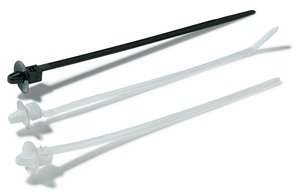

| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc PA66HS 170x4.6 black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 31.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 170.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 5022660326912.0 |
| Packaging 1 - Height (m) | 0.19m |
| Packaging 1 - Length (m) | 0.345m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02039m³ |
| Packaging 1 - Weight (kg) | 1.483001kg |
| Packaging 1 - Width (m) | 0.311m |
