113-05819

TE	113-05819
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50MS Competences Cable holder Accessories

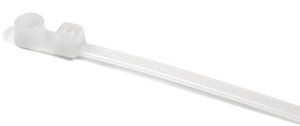

描述	One-piece bundling and fixing tie Quick and easy installation
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	pcs.
PART DESCRIPTION	T50MS-PA66-NA
Product Group	1-piece fixing ties with mounting head for screws
Releasable Closure (Yes/No)	No
Short Description	Fixing Tie 165x4.6 natural
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	32.0mm
Bundle ∅ min.	1.5mm
Length (L)	165mm
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Halogenfree	Yes
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, CAN/CSA-C22.2 no. 62275
UL OCD link	Link
UL Type	11.0
UL-File Number	E64963
GTIN-13 / EAN	5022660019197.0
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.33m
Packaging 1 - Qty	100.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0012m³
Packaging 1 - Weight (kg)	0.148201kg
Packaging 1 - Width (m)	0.145m
