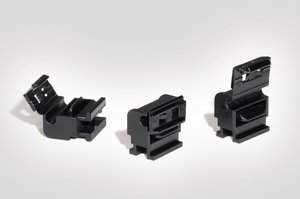

| TE | 151-01392 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to CCWA4.5 |
| 描述 | Connector easily installed by simply pushing into place Connection can be released (non-destructive) For different wire sizes Part locks with an audible "click" Suitable for post-installation of bundles |
| Colour | Black (BK) |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | CCWA4.5-PA66HIRHS-BK |
| Product Group | Connector Clips for Wires |
| 颜色 | Black (BK) |
| Bundle ∅ max. | 4.5mm |
| Bundle ∅ min. | 4.5mm |
| Length (L) | 18.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| GTIN-13 / EAN | 4031026527178.0 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.928478kg |
| Packaging 1 - Width (m) | 0.44m |
