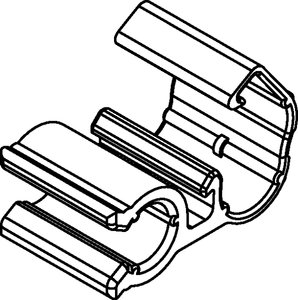

151-14200

产品描述：: Easy to install without the need for a tool 6 mm entry opens and closes by clicking into the required position Suitable for post-installation of bundles

TE	151-14200
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Cable Clip Competences Ratchet P-Clamp for mounting cables and hoses Cable holder Similar products
描述	Easy to install without the need for a tool 6 mm entry opens and closes by clicking into the required position Suitable for post-installation of bundles
Colour	Natural (NA)
Pack Cont.	1000pcs.
Package Quantity per	pcs.
PART DESCRIPTION	Cable Clip-PA66HIR-NA
Product Family	Cable Clip for Cable diameter 5 and 6 mm
Product Group	Bracket cable loom
颜色	Natural (NA)
Bundle ∅ max.	6.0mm
Length (L)	18.9mm
Width (W)	12.0mm
ELV compliant (Article 4 - 2)	YES
Hazardous good	No
Material	Polyamide 6.6, high impact modified (PA66HIR)
Operating Temperature - °C	-40 °C to +85 °C
GTIN-13 / EAN	4031026228464.0
Packaging 1 - Height (m)	0.3m
Packaging 1 - Length (m)	0.625m
Packaging 1 - Qty	1000.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0825m³
Packaging 1 - Weight (kg)	0.853478kg
Packaging 1 - Width (m)	0.44m
Packaging 2 - Type	carton
