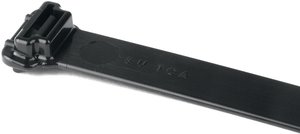

| TE | 111-01715 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to WSS Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories |
| 描述 | Wide strap is designed to minimize pinching of soft hoses and convoluted tubing Low profile head Clamping rails on the bottom of head to increase grip on round bundles Accommodates a large range of bundle diameters: 9.5mm - 104.7mm Flexible strap Bent tip for quick insertion into mounts |
| Application Tool | MK9P, EVO9, EVO9HT, MK9SST |
| Colour | Brown (BN) |
| Identification Plate Position | none |
| Pack Cont. | 300pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | WSS-PA46-BN |
| Releasable Closure (Yes/No) | No |
| 颜色 | Brown (BN) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 57.1mm |
| Bundle ∅ min. | 9.5mm |
| Length (L) | 230.0mm |
| Min.Tensile Strength | 535.0N |
| Thickness (T) | 1.4mm |
| Width (W) | 12.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +130 °C |
| GTIN-13 / EAN | 4031026519593.0 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 300.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00667m³ |
| Packaging 1 - Weight (kg) | 1.437001kg |
| Packaging 1 - Width (m) | 0.23m |
